LX Circulation PUMP - JA100 - 1.0HP

The LX JA Series is renowned for its exceptional durability and performance. The JA100 model continues this tradition, designed to deliver reliable service over long periods while maintaining watertight integrity during continuous operation.

The JA100 features a low-positioned centre suction port that allows the pump to self-drain once the motor is turned off. Its motor is engineered for quiet operation, producing minimal noise and vibration, so you or your customers can enjoy a serene hydro massage experience in bathtubs, spas, or whirlpool baths.

This versatile pump is most commonly used as a circulation pump in hot tubs and swim spas, but it is also suitable for many whirlpool baths. The LX JA100 is widely installed in hot tubs from well-known brands such as MAAX, Cascade, Trinity, Monalisa, and AMC Winer, and it has become a favoured choice in the European market.

63mm Centre Suction x 63mm Centre Discharge

Additional Uses:

Ideal for circulating water in fish ponds, including those with saltwater or seawater.

Suitable for weak corrosive liquids, such as mild acids (without solid granules).

Please Note:

LX pumps no longer come with air switches. However, air switches or pneumatic control boxes can be installed by a qualified electrician if needed.

Sale price
£99.99
Apple Pay MastercardVisa
Customise & Add to basket

Useful Information

Model Information:

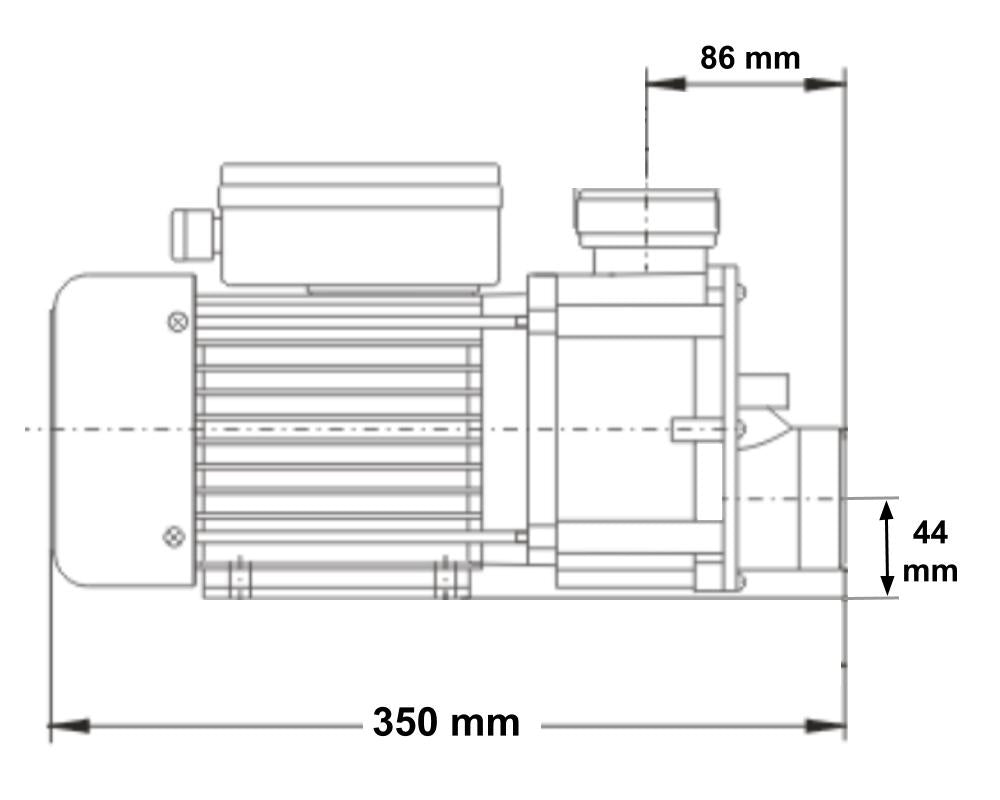

Dimensions (L x W x H): 350 x 155 x 205 mm

Nozzles (Jets): 5-7

Max Head (H max): 12 m

Max Flow (Q max): 250 L/min

Type/Speed: Circulation

Model: JA Series

Horsepower: 0.55-1.0 HP

MPN: JA100

Motor Information:

Amp Draw: 2.5 A

Power (P1): 0.75 kW

RPM: 2900

Capacitor Size: 10 µF

Wet End Information:

Union Connection: 1.5" Inch

Thread Type: Male - Buttress

Impeller Part No.: PA2

Impeller Diameter: 110 mm

Impeller Vane Gap: 8 mm

Shaft Seal Type: Type A

The LX JA100 pump offers a robust and efficient solution for various circulation needs, providing excellent performance and reliability at an economical price.
