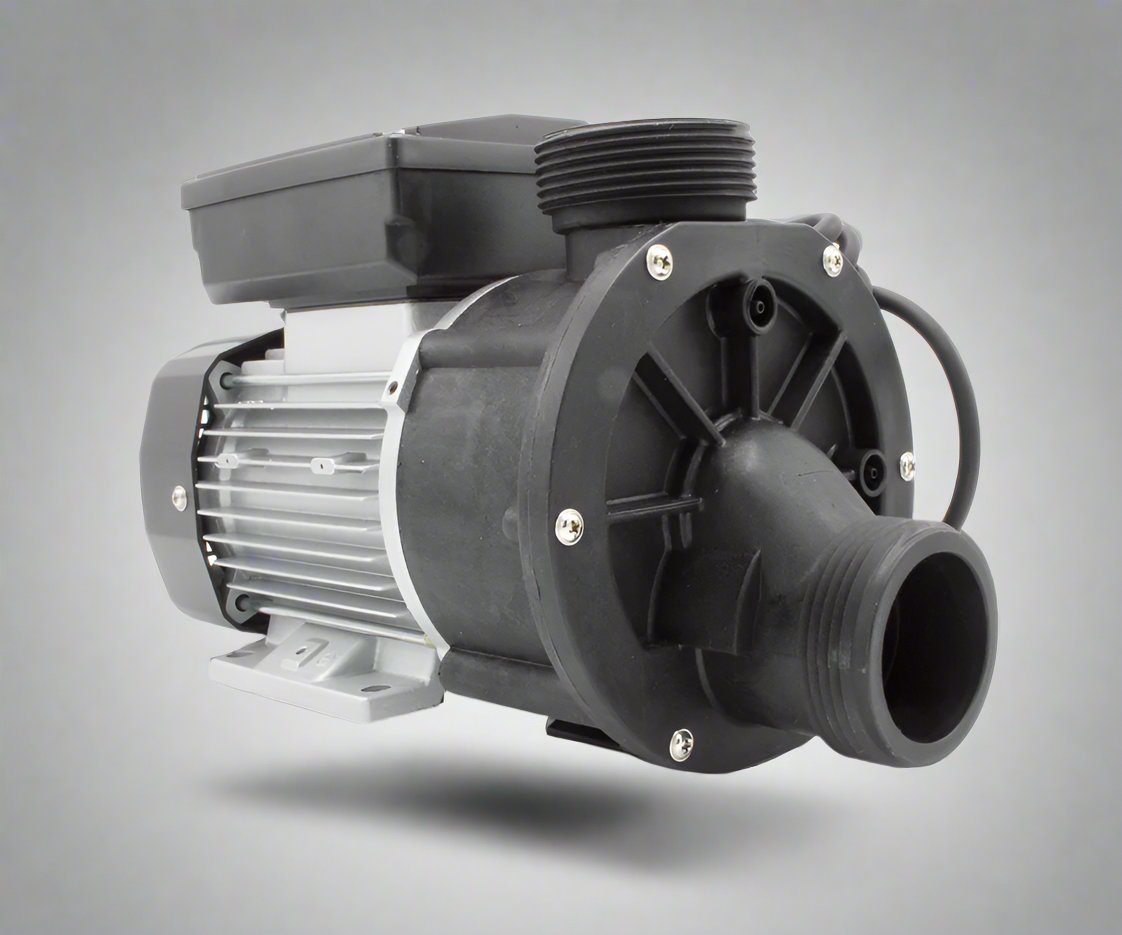

LX Circulation PUMP - JA50 - 0.50HP

The LX JA Series is a trusted line of pumps known for their longevity and reliability. The JA50 model is designed to perform consistently over extended periods, ensuring your system remains watertight and efficient.

The JA50 features a low-positioned centre suction port, allowing the pump to self-drain when the motor is turned off. Its motor is engineered for quiet operation, minimizing noise and vibration, so you or your customers can enjoy a peaceful hydro massage experience in a bathtub, spa, or whirlpool bath.

This versatile pump is commonly used as a circulation pump in hot tubs and swim spas and is also well-suited for whirlpool baths. The LX JA50 is widely utilized in hot tubs from leading brands such as MAAX, Cascade, Trinity, Monalisa, and AMC Winer, among others, making it a popular choice in the European market.

63mm Centre Suction x 63mm Centre Discharge

Additional Uses:

Ideal for cycling water in fish ponds, including those with saltwater or seawater.

Suitable for weak corrosive liquids, such as mild acids (without solid granules).

Please Note:

LX pumps no longer come with air switches. However, air switches or pneumatic control boxes can be installed by a qualified electrician if needed.

Sale price
£109.00
Apple Pay MastercardVisa
Customise & Add to basket

Useful Information

Model Information:

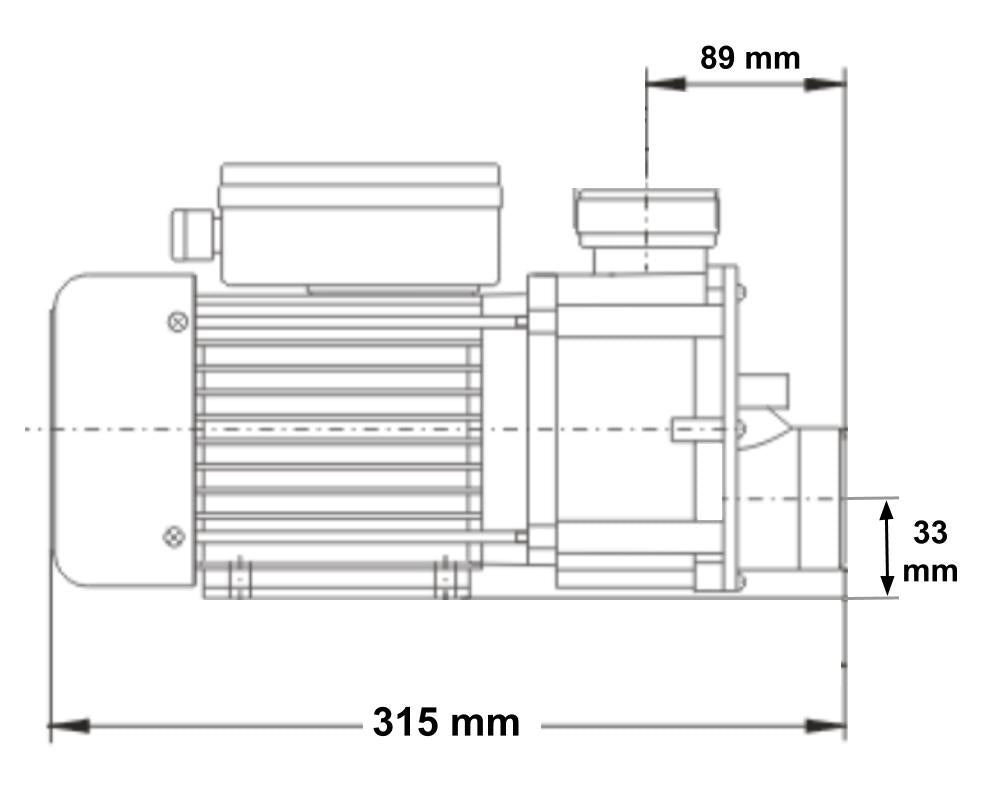

Dimensions (L x W x H): 315 x 155 x 185 mm

Nozzles (Jets): 2-4

Max Head (H max): 10 m

Max Flow (Q max): 180 L/min

Type/Speed: Circulation

Model: JA Series

Horsepower: 0.05-0.5 HP

MPN: JA50

Motor Information:

Amp Draw: 2.0 A

Power (P1): 0.37 kW

RPM: 2900

Capacitor Size: 7 µF

Wet End Information:

Union Connection: 1.5" Inch

Thread Type: Male - Buttress

Impeller Part No.: PA2

Impeller Diameter: 95 mm

Impeller Vane Gap: 6 mm

Shaft Seal Type: Type A

The LX JA50 pump is a reliable and cost-effective solution for a variety of circulation needs, offering exceptional performance and durability.
