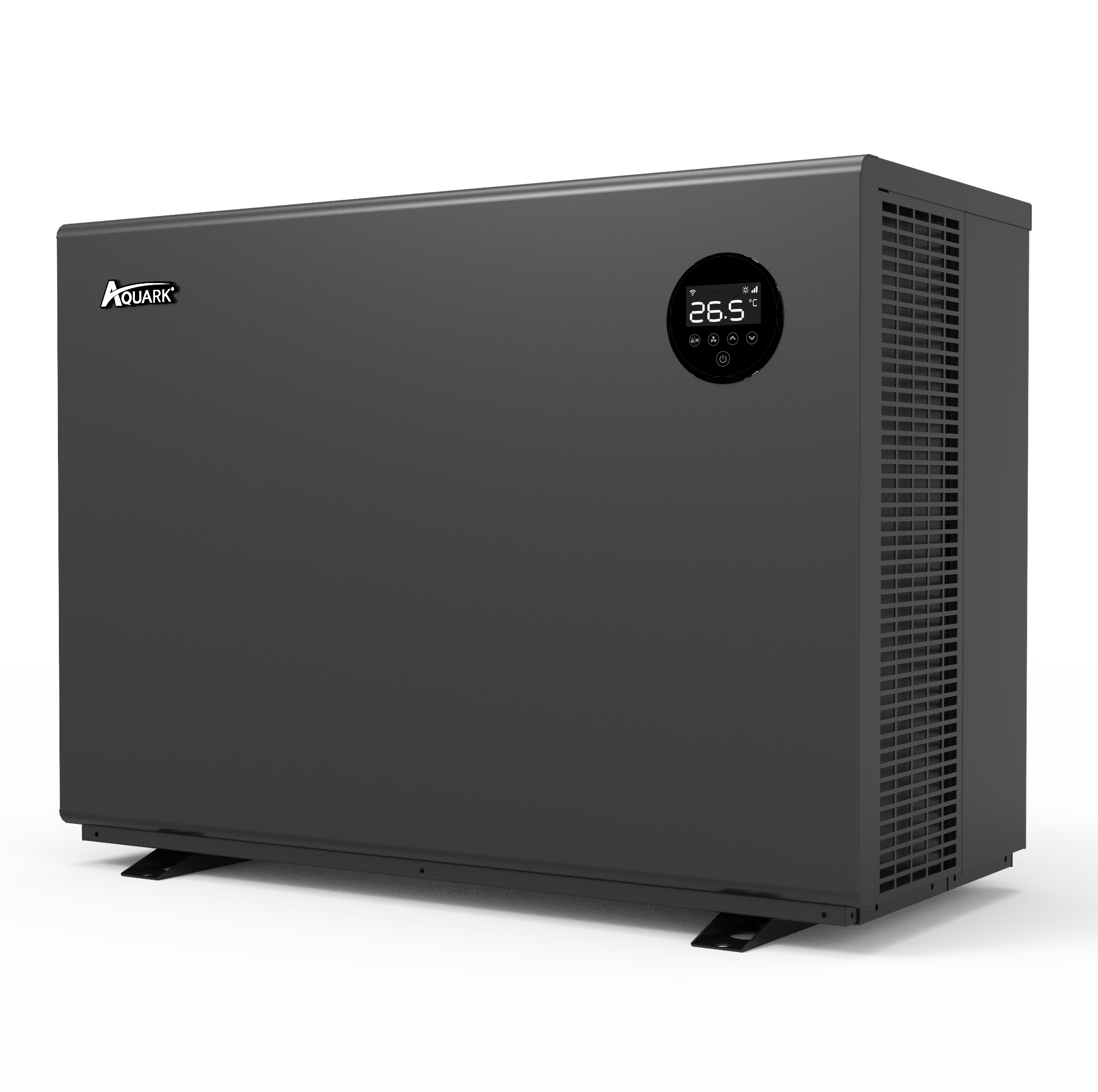

Aquark Mr. Silence Heat Pump 9KW

Name: Aquark Mr. Silence Heat Pump 9KW
Brand: Aquark
SKU: PMP-AQMS90
Price: 2329.00 GBP
Availability: InStock

The Aquark Mr. Silence 9KW is a cutting-edge air source heat pump designed for superior performance and minimal noise.

Save on energy bills with an Air Source Heat Pumps

Benefits:

Energy Efficiency: Provides an economical and energy-efficient solution for heating your hot tub or swim spa.

Cost Savings: Reduces heating bills and overall energy consumption.

All-Season Operation: Functions effectively year-round, even at external temperatures as low as -10°C.

Advanced Technology: Features a DC twin-rotary inverter compressor from Mitsubishi for enhanced performance and reliability.

Quiet Operation: Incorporates advanced noise-reducing technology to ensure a quieter environment.

£2,329.00

was £2,587.78

Customise & Add to basket

Aquark Mr. Silence Heat Pump 9KW

£2,329.00

was £2,587.78

Customise & Add to basket

Ultra-Silent Operation: Designed with a patented back-discharge system to eliminate noise, making it the most silent pool heating solution. The airstream design technology ensures it operates as quietly as a refrigerator.

Energy Efficiency: Utilizes an industry-leading Stepless DC Inverter control system for exceptional energy-saving performance. The heat pump operates at 50% capacity to maintain pool temperature throughout 95% of the pool season, ensuring both energy efficiency and a quiet environment.

High Energy Savings: Features InverPad technology, providing an average of 90% free energy sourced from ambient air.

User-Friendly Controls: Equipped with an easy-to-use touch controller for complete and intuitive management of the pump.

Model Information

Model: AS90

Season: All Year

Installation: Outdoors

Pool Volume: 20 - 45 m³

Connection: 50mm

Dimensions (W x D x H): 890 x 430 x 657 mm

Weight: 55 kg

Sound Level: 39.4 dB

Noise Level (1m): 36.8 - 46.2 dB(A)

Noise Level (10m): 16.8 - 26.1 dB(A)

COP at A15/W25: 7.3 - 4.7

COP at A27/W27: 14 - 7.1

Nominal Flow Volume: 2 - 4 m³/h

Refrigerant: R32

Heating Capacity A27/W27: 9.0 kW

Heating Capacity A15/W25: 6.5 kW

Electrical Information

Input Power: 0.19 - 1.38 kW

Power Supply: 220-240V / 50Hz

Current Rating: 0.83 - 5.98 AMP

Maximum Operating Current: 8.5 AMP

HOW IT WORKS - STEP 1

EVAPORATOR PROCESS

We start by pulling in outside air over the evaporator, which contains cold refrigerant gas. Since this gas is colder than the ambient air, heat from the air is transferred into the colder gas.

HOW IT WORKS - STEP 2

COMPRESSION

The slightly warmed gas is then pumped through a compressor. When a gas is compressed, it naturally increases in temperature, heating it up even more.

HOW IT WORKS - STEP 3

HEAT EXCHANGE

This hot gas is then drawn through a condenser/heat exchanger, which transfers the heat into the hot tub water, warming it up.

HOW IT WORKS - STEP 4

COOLING DOWN

Finally, the gas needs to be cooled again. This is done by passing it through an expansion valve, which releases the pressure on the gas, allowing it to cool down. It's similar to how gas from an aerosol can feels cold when you spray it, due to the expansion.

HAVE A QUESTION?
WE ARE HERE TO HELP.

Check out our FAQ for answers to common questions. Still need help? Reach out to our customer support!

Our customer support is available Monday to Friday: 8am-8:30pm.Average answer time: 24h

How much energy can I save?

As a rule of thumb based on normal hot tub usage, a hot tub heat pump can save you upto 60% on your hot tub running costs.

How does a heat pump work?

Heat pumps heat up the water by extracting natural heat from the outside air. The heat pump fan draws in the air and directs it over the evaporator coil which contains an advanced liquid refrigerant. The air turns into a gas which is then compressed to increase the heat. This hot gas passes through the heat exchanger which transfers the heat from the hot gas to water and heats it up.

What is the warranty on Heat Pumps?

10 years compressor, 5 years Heat Exchange, 3 Years Spare Parts
