LX Seal Kit for LX Pump (LXB-16)

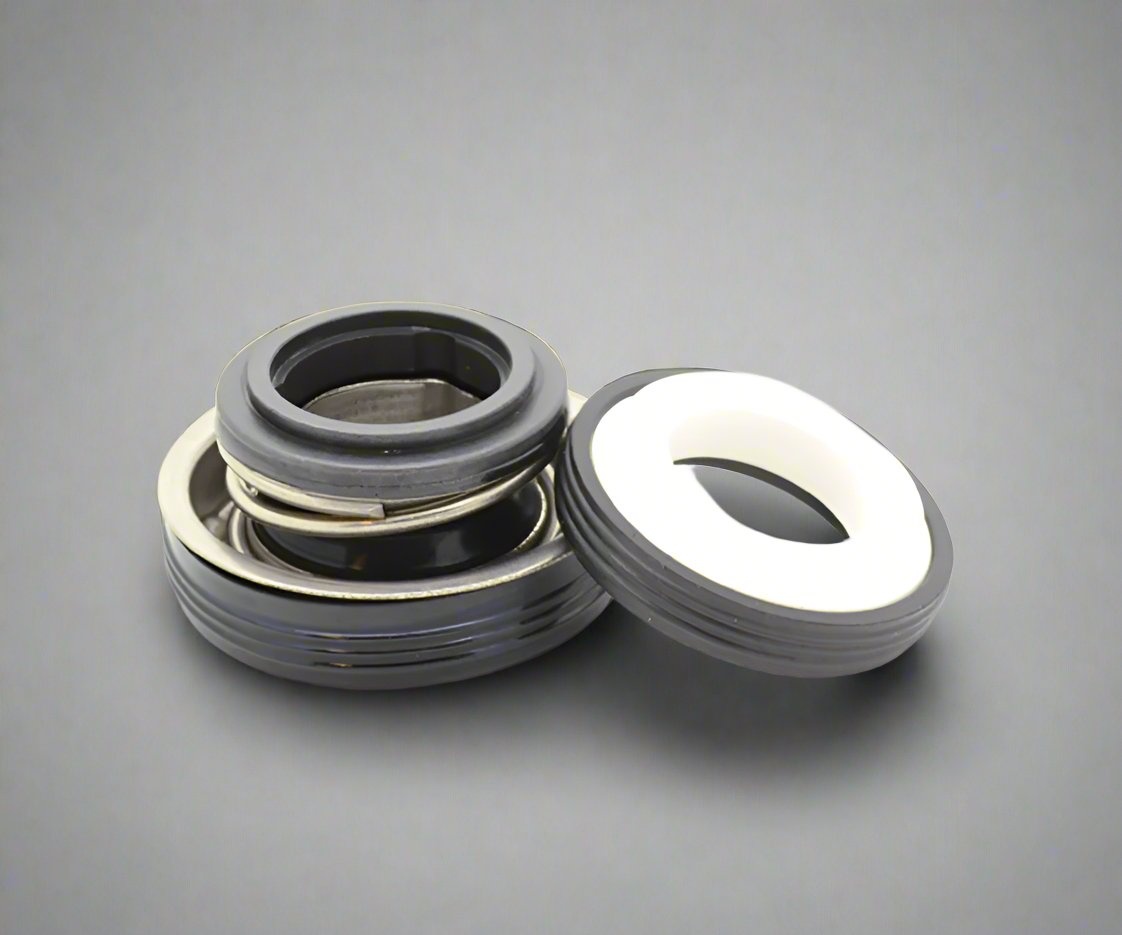

LX Pump Shaft Seal - Type A
Prevents water leakage from the pump wet end along the motor spindle.
Construction:
Two-Part Design:
Part 1: Mounted on the wet end.
Part 2: Features a carbon or ceramic seal that fits behind the impeller.
Compatible With:
JA Series (all models) manufactured from 2008 onwards
LP Series (all models) manufactured from 2008 onwards
WP Series (all models) manufactured from 2008 onwards
EA Series (all models) manufactured from 2008 onwards
This seal is designed to maintain effective sealing in these pumps, ensuring durability and reliable performance. If you have any specific questions
£19.99
TOTAL
£19.99
149 in stock
Useful Information
LX Pump Co. Shaft Seal – JA, LP & WP Series
Carbon ceramic sprung shaft seal for the following LX pumps manufactured after 2008.
Compatible Pump Series:
JA Series, all models (2008 onwards) LP Series, all models (2008 onwards) WP Series, all models (2008 onwards) EA Series, all models (2008 onwards) WTC range of LX pumpsPump & Seal Information
| Pump Mfg. | Model | Seal | Shaft Ø | Head | Seat |
|---|---|---|---|---|---|
| Aqua-flo | Circ Master PS-200 | 5/8" | 15.8 mm | A | 1 |
| Flo Master | PS-200 | 5/8" | 15.8 mm | A | 1 |
| XP2 | PS-200 | 5/8" | 15.8 mm | A | 1 |
| XP2e | PS-200 | 5/8" | 15.8 mm | A | 1 |
| Astral | Victoria | ||||
| Columbia | PS-142 | B | 1 | ||
| 1600 Astramax | PS-1000 | 5/8" | 15.8 mm | B | 1 |
| 1800 Sprint | PS-200 | 5/8" | 15.8 mm | A | 1 |
| 2000 Sprint | PS-201 | ¾" | 19 mm | A | 1 |
| Balboa | Niagra PS-201 | ¾" | 19 mm | A | 1 |
| Dura Jet | PS-201 | ¾" | 19 mm | A | 1 |
| Certikin | Mini Pump PS-1815 | ||||
| Espa | Iris PS-601 | ¾" | 19 mm | B | 1 |
| Hayward | Power-Flo PS-2131 | 5/8" | 15.8 mm | A | 31 |
| Hayward | Power-Flo II PS-2131 | 5/8" | 15.8 mm | A | 31 |
| Hayward | Turbo-Flo PS-2131 | 5/8" | 15.8 mm | A | 31 |
| Hayward | Max-Flo PS-201 | ¾" | 19 mm | A | 1 |
| Hayward | Super PS-201 | ¾" | 19 mm | A | 1 |
| HydroAir | Genesis PS-201 | ¾" | 19 mm | A | 1 |
| HydroAir | Perseus 450 PS-1000 | 5/8" | 15.8 mm | B | 1 |
| HydroAir | Magnaflow HA440 PS-1000 | 5/8" | 15.8 mm | B | 1 |
| HydroAir | Magnaflow HA440NG PS-201 | ¾" | 19 mm | A | 1 |
| HydroAir | Circulation PS-201 | ¾" | 19 mm | A | 1 |
| HydroAir | AG Series PS-201 | ¾" | 19 mm | A | 1 |
| HydroAir | Argonaut Series PS-201 | ¾" | 19 mm | A | 1 |
| ITT Marlow | Argonaut JEC series PS-201 | ¾" | 19 mm | A | 1 |
| ITT Marlow | Jet Pump PS-201 | ¾" | 19 mm | A | 1 |
| LX Pump Mfg. | JA Series, 08 on | Type A | ¾" 19 mm | A | 1 |
| LX Pump Mfg. | TDA Series, 08 on | Type A | ¾" 19 mm | A | 1 |
| LX Pump Mfg. | LP Series, 08 on | Type A | ¾" 19 mm | A | 1 |
| LX Pump Mfg. | WP Series, 08 on | Type A | ¾" 19 mm | A | 1 |
| LX Pump Mfg. | DH 1.0, EA, TDA pre 07 | Type B | 5/8" 15.8 mm | 1 | |
| LX Pump Mfg. | EA Series, 08 on | Type A | ¾" 19 mm | A | 1 |
| LX Pump Mfg. | WTC, 08 on | Type A | ¾" 19 mm | A | 1 |
| Sta-Rite | 5P2R (Dura-Glas) PS-200 | 5/8" | 15.8 mm | A | 1 |
| Sta-Rite | 5P2R (Pre 1998) PS-100 | 5/8" | 15.8 mm | A | 1 |
| Sta-Rite | 5P4R PS-201 | ¾" | 19 mm | A | 1 |
| Sta-Rite | LT PS-163 | ½" | 12.7 mm | B | 1 |
| Sta-Rite | DJ/JS/JT SERIES (37400-0027S) PS-601 | ¾" | 19 mm | B | 1 |
| Vico | Ultra Jet PS-201 | ¾" | 19 mm | A | 1 |
| Vico | Ultimax PS-201 | ¾" | 19 mm | A | 1 |
| Vico | SuperFlow Plus .75Hp - Non Serviceable | N/A | N/A | N/A | N/A |
| Vico | Plus 1.0Hp PS-200 | 5/8" | 15.8 mm | A | 1 |
| Vico | Plus 1.3Hp PS-200 | 5/8" | 15.8 mm | A | 1 |
| Waterway | Executive Series PS-1000 | 5/8" | 15.8 mm | B | 1 |
| Waterway | Spa Flo PS-1000 | 5/8" | 15.8 mm | B | 1 |
| Waterway | Centre Discharge PS-1000 | 5/8" | 15.8 mm | B | 1 |
| Waterway | Iron Might PS-1000 | 5/8" | 15.8 mm | B | 1 |
| Waterway | Tiny Might, Pre 09 PS-671 | 3/8" | 9.5 mm | B | 1 |
