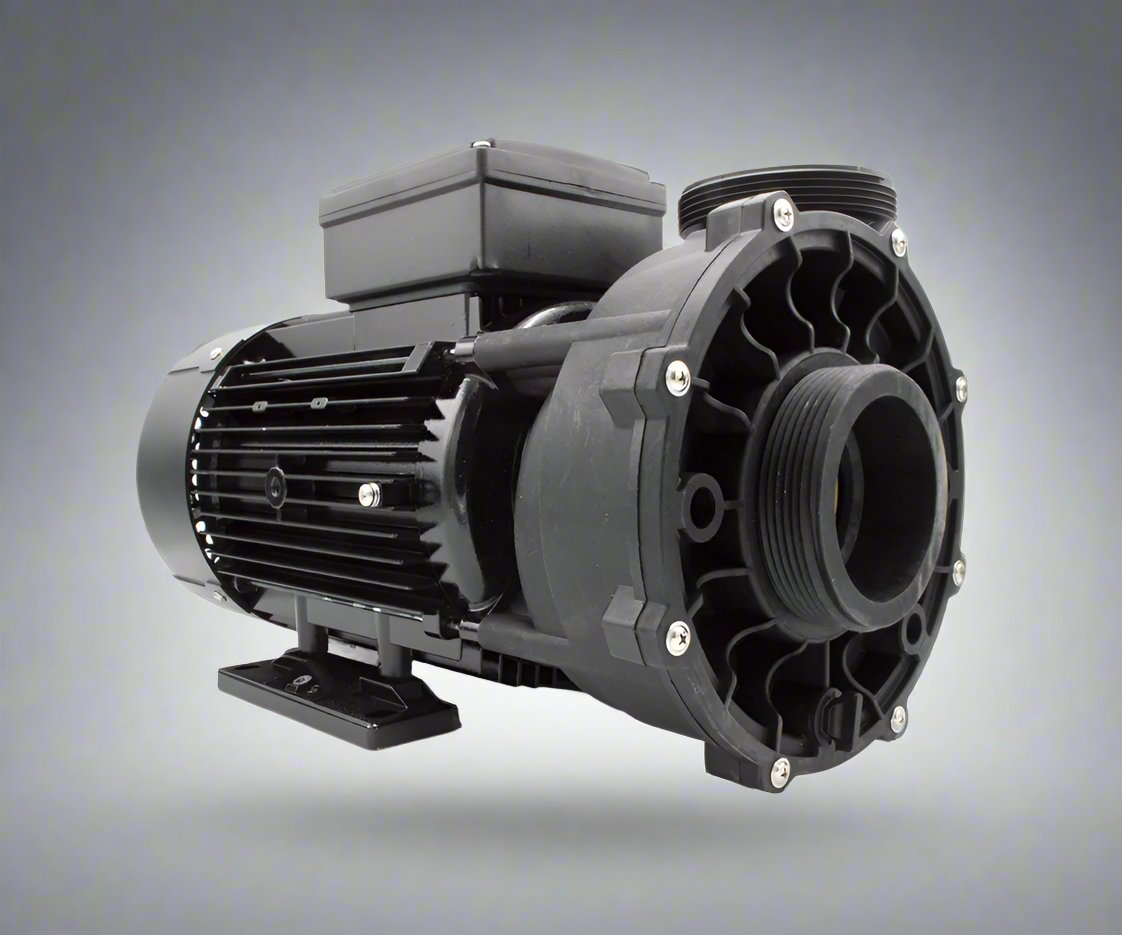

LX WP500 Pump – 2 Speed, 5HP, 2.5 “x 2.5” – Storm Force 9 Alternative
The LX Whirlpool WP500-II pump delivers exceptional performance, making it ideal for counter-current swimming and powerful hydrotherapy. With a robust 3.7 kW rating at high speed, it efficiently moves up to 70,000 litres of water per hour, positioning it as one of the most powerful single-phase pumps commonly used in spas.
93mm Centre Suction x 93mm Side Discharge
Key Features:
High-Speed Power: 3.7 kW (5.0 HP) for intense water movement.
Low-Speed Power: 0.75 kW for quieter, more economical operation.
Maximum Flow Rate: 1120 litres per minute.
Current Draw: 15 A at high speed, 4.5 A at low speed.
Connection Type: 94 mm male thread (2.5-inch MBT-type) for both suction and return pipes. Compatible with 2.5-inch (73 mm) and 2-inch (60 mm) pipe unions.
Wet End Orientation: Fixed; cannot be changed.
£319.99
TOTAL
£319.99
10 in stock
Useful Information
LX WP500 Pump - 2Speed 5HP 2.5 x 2.5
The WP500-II LX pump, featuring a powerful 5HP two-speed motor, is specifically engineered for hot tubs and spas. Our stock includes the latest version, upgraded with ceramic shaft seals in the wet end to address premature seal issues experienced in earlier models.
This pump is commonly found on newer Canadian Spas, easily identified by its distinctive red motor, making it a direct replacement. Additionally, the WP500-II LX serves as an ideal substitute for the Waterway Viper two-speed pump, often used in many swim spas.
Specifications:
5.0 Horsepower
Two Speed
2.5" Connections
High Speed: 5HP / 3.75kW
Low Speed: 1.0HP / 0.75kW
Max. Head: 14m
Max. Flow: 1120 L/min
93mm Centre Suction x 93mm Side Discharge
Pump Unions Included

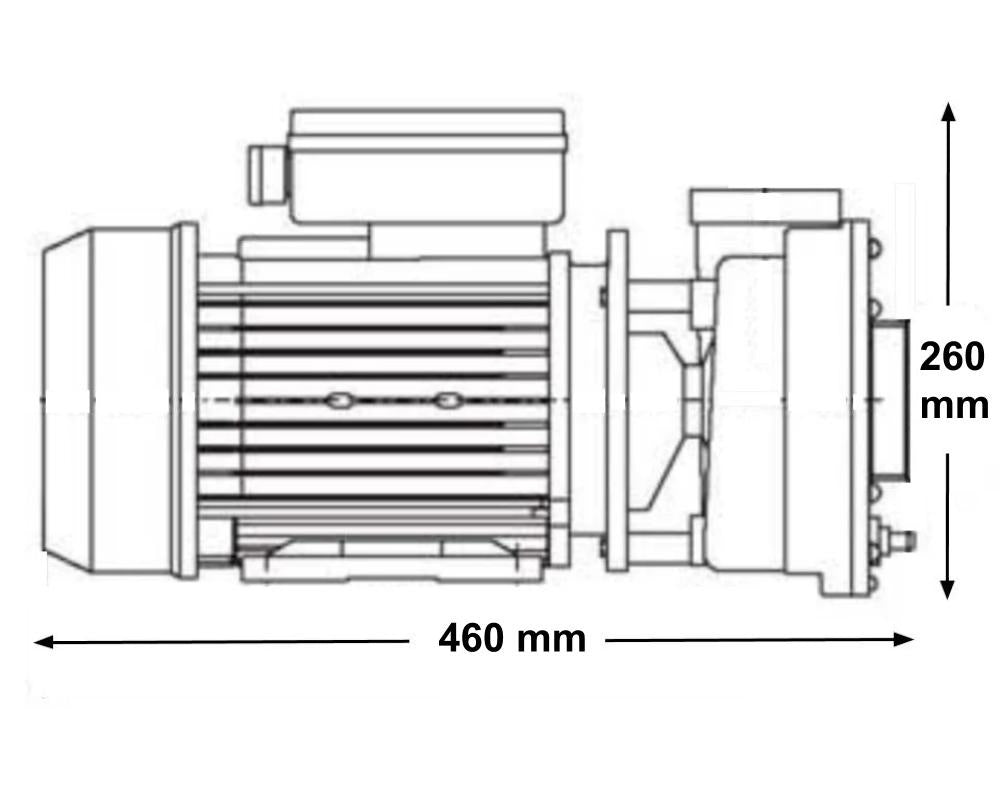

Dimensions:
Height: 260mm
Width: 460mm
Depth: 200mm
Weight: 19KG
Compatible Models:
Can be used to replace Storm Force 9
