LX TDA50 Circulation Pump – 0.5HP – Single Speed 1.5″x1.5″
The LX Whirlpool TDA50 pump is a dependable single-speed pump ideal for spas, specifically designed for efficient massage jet operation. This pump is favoured for its robust performance and ease of use, making it a popular choice among spa enthusiasts and manufacturers.
63mm Centre Suction x 63mm Centre Discharge
Key Features:
Efficient Performance: Provides 0.5 kW (0.67 HP) of power, effectively driving massage jets and enhancing the overall spa experience.
Adequate Flow Rate: Moves up to 150 litres per minute, ensuring consistent water flow and jet functionality.
Please Note:
LX pumps no longer come with air switches. However, air switches or pneumatic control boxes can be installed by a qualified electrician if needed.
£99.00
TOTAL
£99.00
2 in stock
Useful Information
The TDA50 LX Circulation pump, equipped with a 0.5hp single-speed motor, is specifically designed for Hot Tubs and Spas. This Chinese-manufactured pump is easily recognisable by its distinctive yellow motor casing. Only one version of the TDA50 has ever been produced, and our current stock features the latest upgraded ceramic shaft seals in the wet end.
This is a single-speed pump, designed to operate at high speed for JETS or Boost mode when using your spa or hot tub. The wet end connects to 1.5-inch plumbing unions on both the inlet and outlet, with an external thread diameter of 63mm. To ensure a proper seal, 1.5-inch union O-rings are recommended.
The pump’s wet end can be easily rotated from the standard 12 o’clock position to either 3 o’clock or 9 o’clock by simply removing the four bolts securing it to the motor.
63mm Centre Suction x 63mm Low Discharge
Specifications:
0.5 HorsepowerSingle Speed
1.5" Connections
High Speed: 0.5HP / 1.10kW
Max. Head: 140 m
Max. Flow: 380 L/min
Pump Unions Included

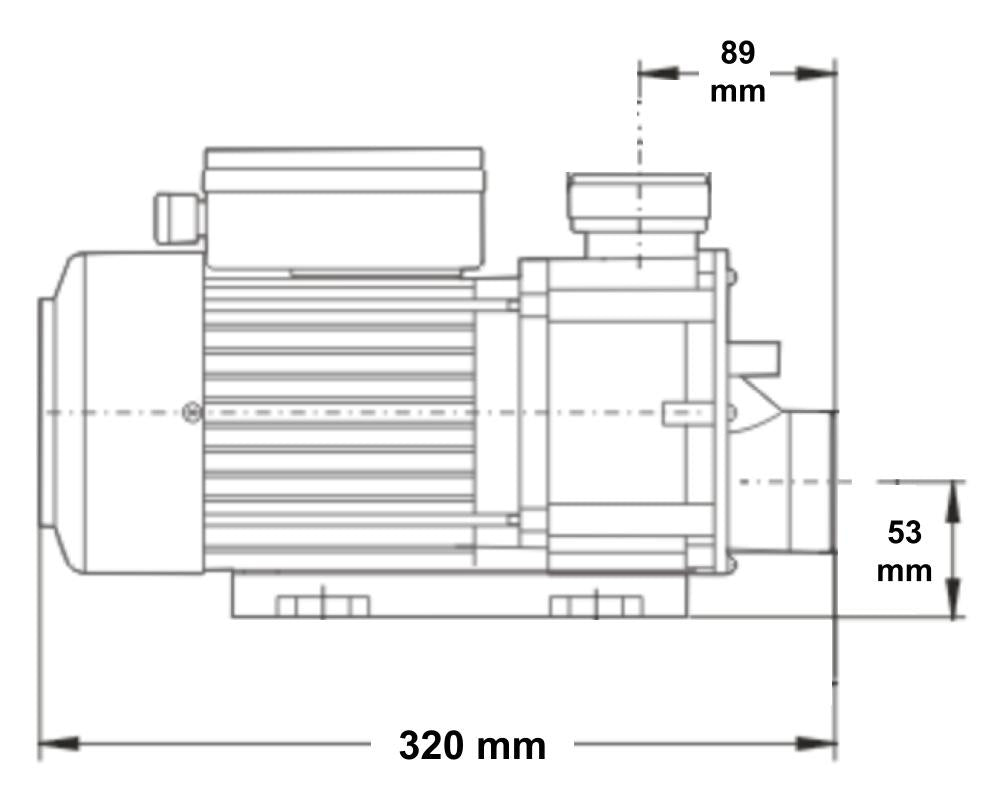

Dimensions:
( L x W x H)
320 x 155 x 200 (mm)
320 x 155 x 200 (mm)
Weight of item: 9.3 Kg's
