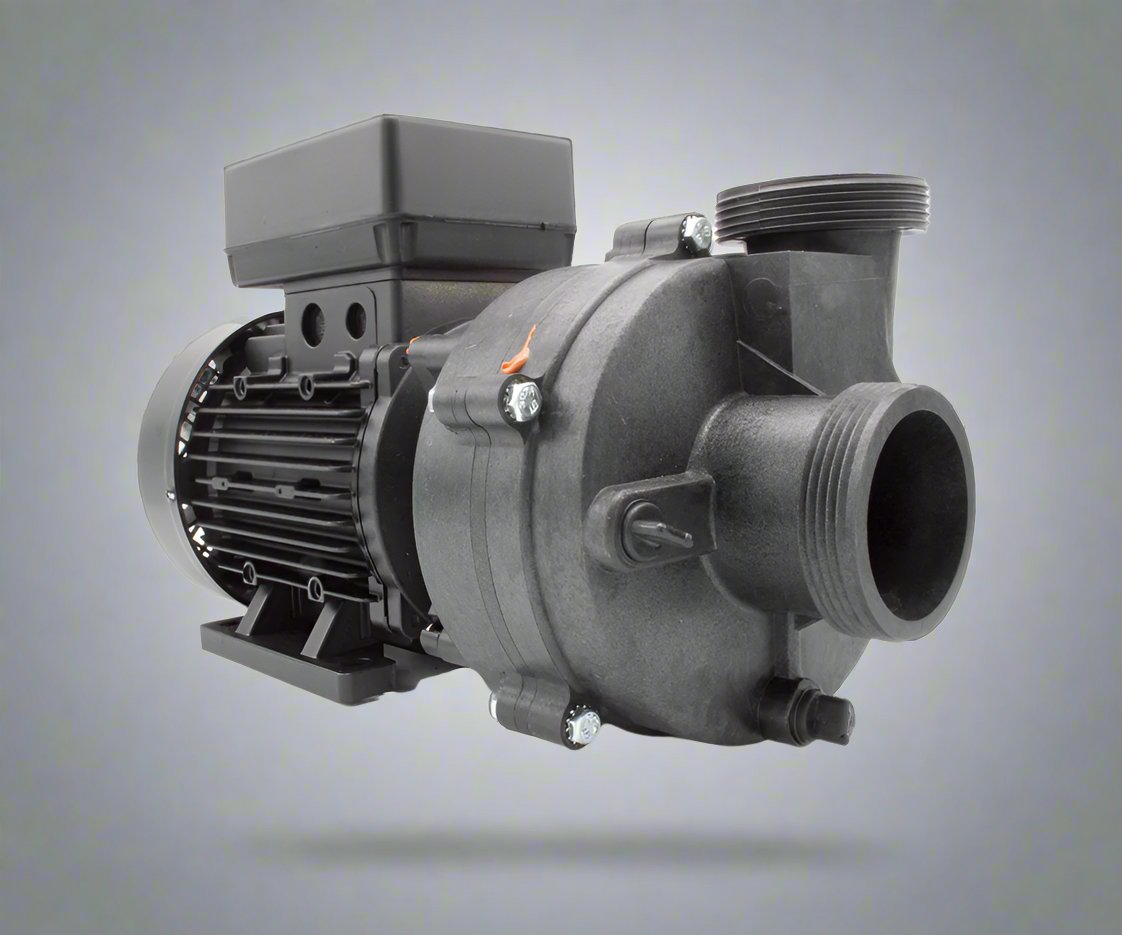

Balboa Niagara Pump 3HP 2 Speed (1023332)
Balboa Niagara Spa Pump – 3HP – 2 Speed
79mm Centre Suction x 79mm Side Discharge
The Balboa Niagara pump, formerly known as the Ultimax, is a high-performance spa pump ideal for replacing Ultima, Ultimax, or Ultrajet pumps. Designed for flexibility and long service life, the Niagara is a benchmark in luxury spa pump technology. It is commonly used in systems with high jet counts and multi-pump configurations.
In recent versions, Balboa has increased the height of the 2-speed model (now 245 mm compared to the earlier 205 mm). If the new size doesn't suit your setup, the HA440NG (1.5 HP) is a suitable alternative.
Common Part Numbers (3HP / 2-Speed):
1023332, 1023008, 1023009, 1023006, 1023039, 1023061, 1023062
Key Features:
3.0 HorsepowerTwo-Speed Operation
High Flow Rates Exceeding 44 m³/h
Centre Suction with Side Discharge
Energy-Efficient Motor Options
Carbon Ceramic Seals with Viton Elastomers
Multi-directional Volute Mounting
Compatible with 63mm, 2", and 2.5" Unions
Supplied with Pump Unions and Cable
Designed to Replace Vico and Sta-Rite Ultimax Pumps
Same Wet End Fitment as Previous Ultimax Models
VDE Approved to EN60335-1 and EN60335-2-41
Low Profile Electrical Box for Easy Installation
Uses 2" Connections
Specifications:
Max Head: 17 / 4 mMax Flow: 49 / 25 m³/h
RPM: 2900 / 1450
Power – P1: 2.2 kW
Voltage / Frequency: 230V / 50Hz
Amp Draw: 11.5 / 2.5 A
Motor Type: Finned Body (European Style)
Frame Size: 56F
Cord / Plug Type: 4 Core AMP
Wet End Configuration: Centre Suction, Side Discharge
Union Connection: 2.0" (79 mm)
Shaft Seal Type: PS-201
Thread Type: Male – Buttress
Part No.: 1215186

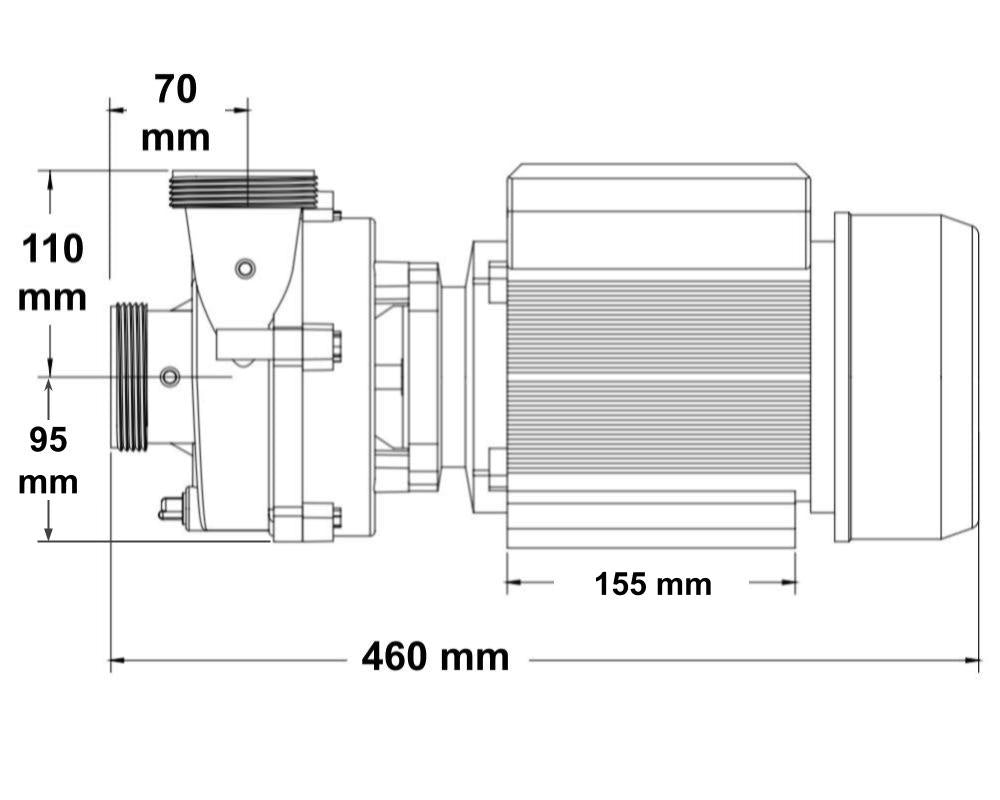

Dimensions:
Length: 459 mmWidth: 203 mm
Height: 203 mm
Weight: 17.3 kg
Important:
Recent Balboa Niagara pumps feature a new motor design. Please confirm the new motor size and layout are suitable for your installation before ordering.
The Balboa Niagara is a powerful, flexible, and reliable spa pump designed for demanding applications, offering top-tier performance and long-term durability.
£408.00
TOTAL
£408.00
5 in stock
Useful Information
Balboa Niagara Spa Pump – 3HP – 2 Speed
79mm Centre Suction x 79mm Side Discharge
The Balboa Niagara pump, formerly known as the Ultimax, is a high-performance spa pump ideal for replacing Ultima, Ultimax, or Ultrajet pumps. Designed for flexibility and long service life, the Niagara is a benchmark in luxury spa pump technology. It is commonly used in systems with high jet counts and multi-pump configurations.
In recent versions, Balboa has increased the height of the 2-speed model (now 245 mm compared to the earlier 205 mm). If the new size doesn't suit your setup, the HA440NG (1.5 HP) is a suitable alternative.
Common Part Numbers (3HP / 2-Speed):
1023332, 1023008, 1023009, 1023006, 1023039, 1023061, 1023062
Key Features:
3.0 HorsepowerTwo-Speed Operation
High Flow Rates Exceeding 44 m³/h
Centre Suction with Side Discharge
Energy-Efficient Motor Options
Carbon Ceramic Seals with Viton Elastomers
Multi-directional Volute Mounting
Compatible with 63mm, 2", and 2.5" Unions
Supplied with Pump Unions and Cable
Designed to Replace Vico and Sta-Rite Ultimax Pumps
Same Wet End Fitment as Previous Ultimax Models
VDE Approved to EN60335-1 and EN60335-2-41
Low Profile Electrical Box for Easy Installation
Uses 2" Connections
Specifications:
Max Head: 17 / 4 mMax Flow: 49 / 25 m³/h
RPM: 2900 / 1450
Power – P1: 2.2 kW
Voltage / Frequency: 230V / 50Hz
Amp Draw: 11.5 / 2.5 A
Motor Type: Finned Body (European Style)
Frame Size: 56F
Cord / Plug Type: 4 Core AMP
Wet End Configuration: Centre Suction, Side Discharge
Union Connection: 2.0" (79 mm)
Shaft Seal Type: PS-201
Thread Type: Male – Buttress
Part No.: 1215186
Dimensions:
Length: 459 mmWidth: 203 mm
Height: 203 mm
Weight: 17.3 kg
Important:
Recent Balboa Niagara pumps feature a new motor design. Please confirm the new motor size and layout are suitable for your installation before ordering.
The Balboa Niagara is a powerful, flexible, and reliable spa pump designed for demanding applications, offering top-tier performance and long-term durability.
