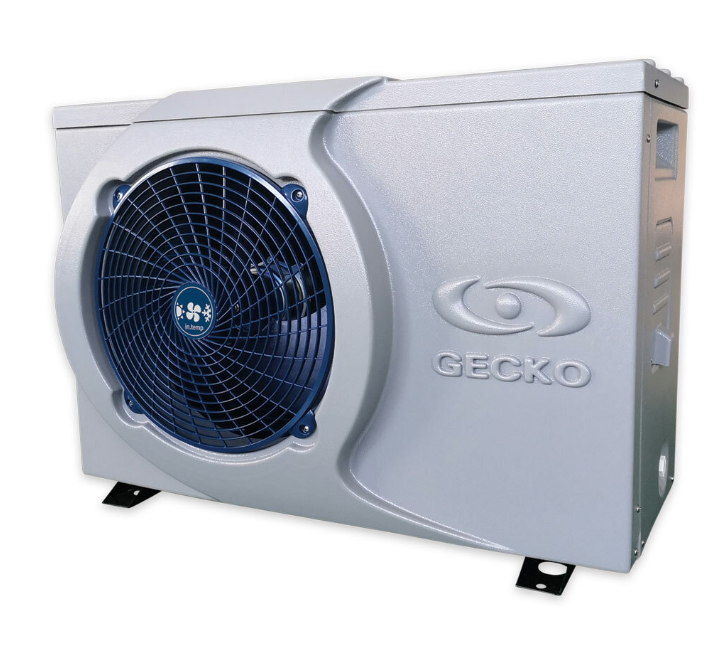

Gecko IN.TEMP – 5KW Heat Pump

Gecko in.temp 5KW Heat Pump

Features:

• Eco-Efficient Heating and Cooling for Your Spa Get ready to appreciate the power of the most eco-efficient technology to heat spa water. The in.temp heat pump not only heats but also cools, providing maximum comfort year-round.

• Heat & Cool Enjoy warm water during colder months and refreshing cool water on hot sunny days with the in.temp’s powerful heating and cooling capabilities.
• Plug and Play Solution Gecko’s new heat pump solution is easy to use. Simply connect the in.temp to a compatible Y series control pack with RS-485 interface, and it automatically detects and manages power — no additional power circuit required.
• Benefit from Energy Savings Air-sourced heat pumps like the in.temp can save up to 75% energy compared to traditional electric heaters. It uses eco-friendly refrigerants (R32 and R410A) for a greener spa experience.
• Stepped Union Specialized output fittings compatible with both 1.5" and 50mm piping offer installation flexibility.
• Total Flexibility with Multiple Modes Choose from six operation modes: Eco Heat, Smart Heat, Eco Auto, Smart Auto, Cool, and Electric. These smart modes maximize comfort and energy savings, keeping your spa at the perfect temperature regardless of the weather.

Specifications:

Model Information:
Model: in.temp-H5.0-CE
MPN: 0615-807002
Season: All Year
Installation: Outdoors
Connection: 1.5", 50mm
Weight: 39 Kg
Noise (1m): 51.5 dB(A)

Performance:
COP at A15/W25: 4.59
COP at A27/W27: 6.21
Nominal Flow Volume: 2.27 m³/h
Refrigerant: R32
Heating Capacity A27/W27: 5.54 kW
Heating Capacity A15/W25: 3.99 kW

Electrical Info:
Input Power: 1.2 kW
Power Supply: 220-240V / 50Hz
Current Rating: 3.9 AMP
Maximum Operating Current: 6.07 AMP

Dimensions:

Length: 794mm

Width: 395mm

Height: 555mm

Summary:
Power Input (max): 1.29 kW
Rated Current: 3.9 A
Max. Current: 6.07 A
Pressure Range: Min. 218 psi / Max. 609 psi
Best Flow Rate: 2.27 m³/h (10 GPM)

MPN: 0615-807002
